SUCTIONPRO
(Self Priming Pump)

VR Pumps Manufactures Suctionpro, it's a compact yet powerful self-priming pump designed for domestic water supply, gardening, and light construction applications. Renowned for its quick suction and easy priming capability, it ensures smooth water flow even after intermittent use. Ideal for homes and small buildings with moderate head requirements, Suctionpro combines efficient performance, low-noise operation, and a lightweight, user-friendly design, making it perfect for everyday water needs.

AUTO PRIMING
SUPER SUCTION
LIGHT WEIGHT
Wellrise Pump

OUR PRODUCT MODELS

SUCTIONPRO ECO

VSUP05252535

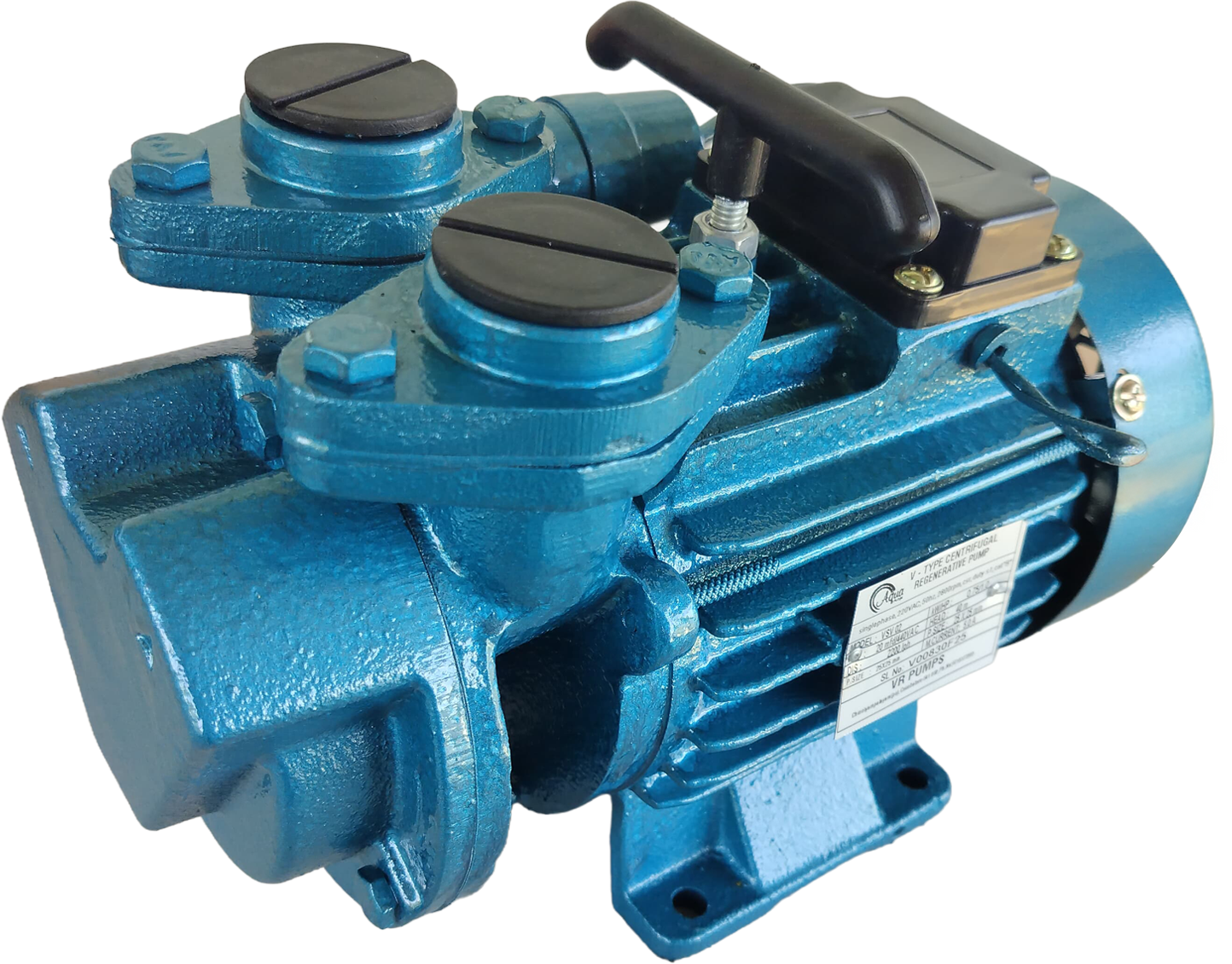

SUCTIONPRO BOOST

VSUP10252544

DESIGN HIGHLIGHTS

SELF-PRIMING FUNCTIONALITY

Starts pumping quickly without external priming

SUPER SUCTION CAPABILITY

Handles vertical suction with ease

COMPACT SIZE

Space-saving and fits in tight corners

LOW NOISE OPERATION

Runs longer with less electricity

LIGHTWEIGHT CONSTRUCTION

Easy to transport and install

TECHNICAL SPECIFICATIONS

Voltage Range

180V – 240V

Motor Speed

2850 RPM

Maxmium Head

Upto 45 meters

Motor Rating

S1 Continuous Duty

Horsepower

0.5 to 1 HP

Maximum Discharge

Upto 66 LPM

MATERIALS USED

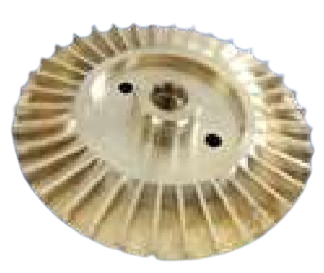

IMPELLER

Noryl Impeller

The brass forged impeller offers high corrosion resistance, excellent machinability, good conductivity, and antimicrobial properties.

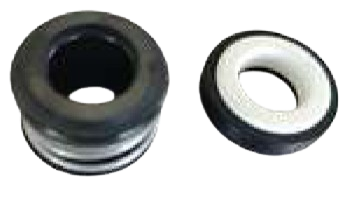

MACHANICAL SEAL

Noryl Impeller

This combination prevents water leakage and protects the motor from internal damage, ensuring a seamless, leak-proof pump with seals made of Carbon, Ceramic, NBR, and SS.

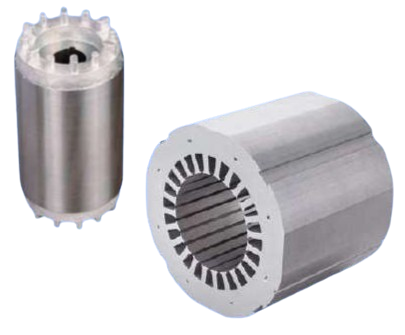

STAMPING

Pump Casing

CRNO stampings form the rotor and stator from electrical steel, efficiently converting electrical energy into mechanical energy.

WINDING

Ball Bearings

EC-grade copper windings provide superior conductivity, enhancing motor performance and efficiency while reducing energy consumption.

ROTOR SHAFT

Capacitor

The SS 410/EN8 shaft offers excellent wear resistance and precision balance, extending the pump’s lifespan under continuous operation.

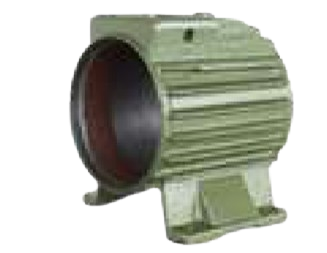

MOTOR BODY

Copper Winding

High-quality FG 200 gray iron casting with rust-preventive coating provides excellent strength, abrasion resistance, and heat resistance.

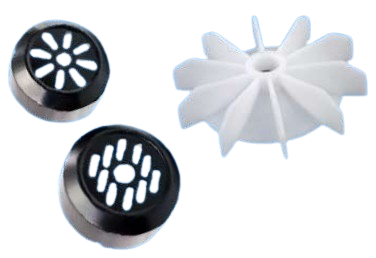

PUMP CASTING COMPONENTS

Mechanical Seals

The cooling fan ensures efficient heat dissipation, maintaining optimal motor temperature and preventing overheating, while the protective fan cover shields against dust and debris.

IDEAL FOR

Farmers

Farmers & Gardeners

Looking for easy water
transfer pumps

Household

Small Contractors

For temporary water
pumping needs on sites

Construction

Plumbers

Need quick-install,
quick-service pumps

Gardening

Dealers

Affordable pump with wide rural,
semi-urban demand

CORE BENEFITS

Common Problems and Our Pumping Solutions

Delayed water lift

Self-priming pump activates faster

Pump weight too heavy

Lightweight and portable

Small area for fitting

Small size fits tight domestic setups

Noise issues inside homes

Quiet motor enhances user experience

PERFORMANCE

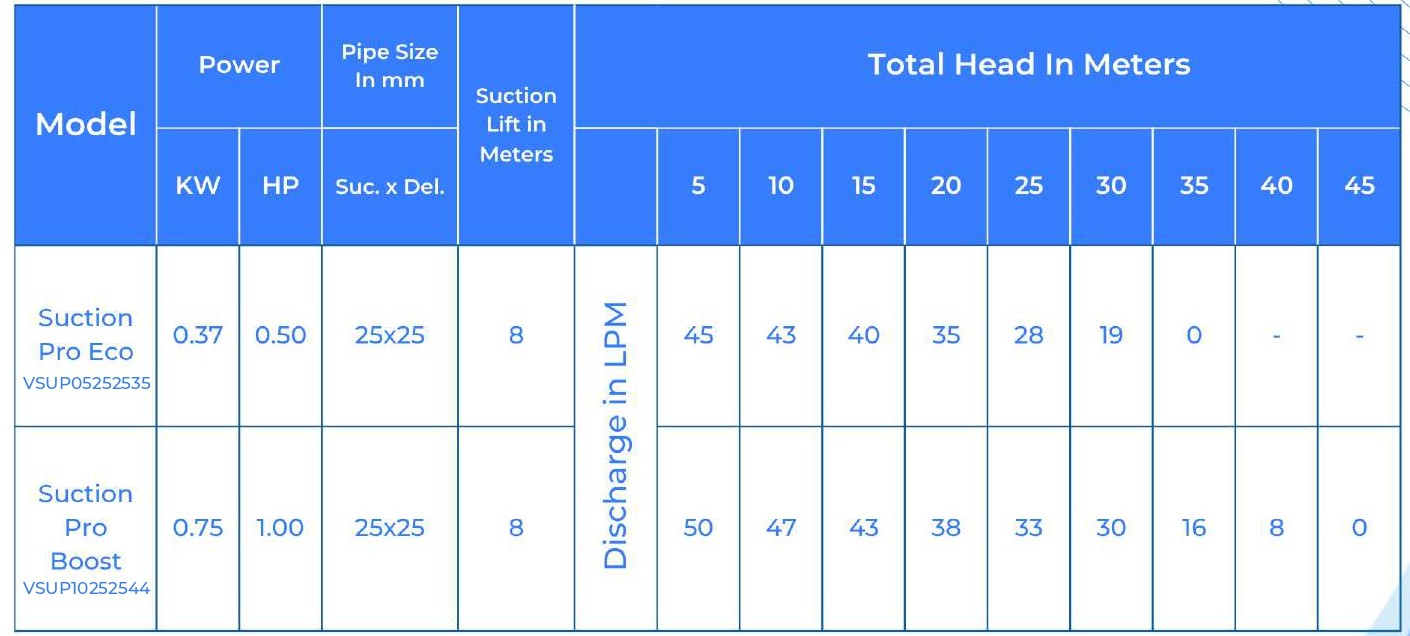

Performance Chart
