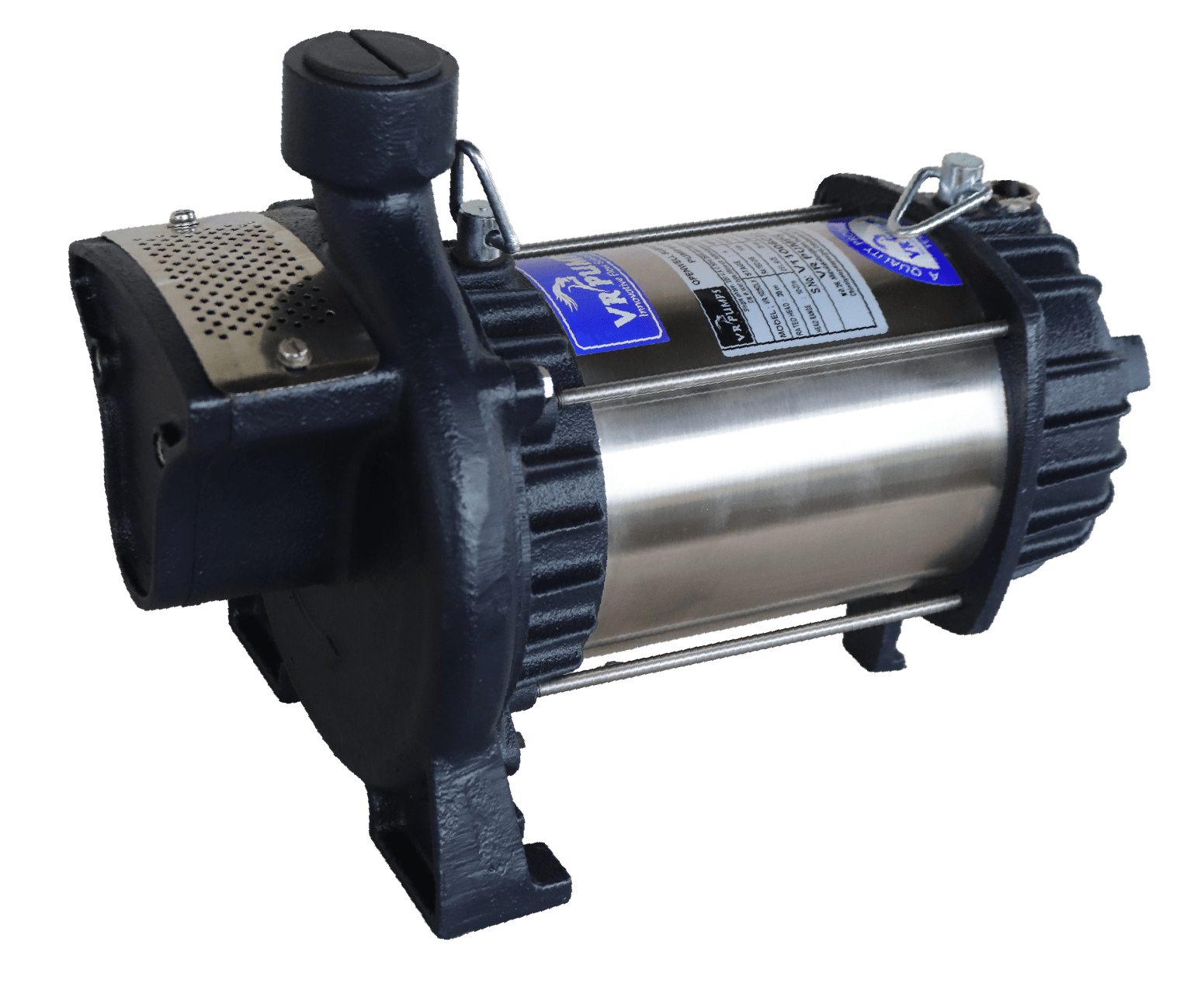

MEGAFLOW
(Deluxe Openwell Pump)

VR Pumps Manufactures Megaflow, it's a deluxe openwell pump engineered for horizontal installation inside sumps or open wells. Designed to deliver powerful and consistent performance under surface water conditions, it ensures high discharge output with enhanced reliability. With its robust build and superior hydraulic design, Megaflow is ideal for applications that demand continuous operation, strong water flow, and long service life.

RAPID FLOW
EFFICIENCY MOTORS
RUST PROOF
AQUARISE Pump

OUR PRODUCT MODELS

MEGAFLOW BOOST

VMF052526

MEGAFLOW ULTRA

VMF102530

MEGAFLOW ULTRA MAX

VMF102533

MEGAFLOW ULTRA MAX PLUS

VMF102536

MEGAFLOW ULTRA MAX PRO

VMF152538

DESIGN HIGHLIGHTS

HORIZONTAL SUBMERSIBLE SETUP

Installed directly into sumps or wells for efficient submerged operation.

EASY MAINTENANCE

Accessible design allows easier cleaning, servicing, and repairs.

HIGH FLOW CAPACITY

Delivers strong discharge, ideal for irrigation and water supply.

RUST-FREE BUILD

Corrosion-resistant body ensures durability and long service life.

ENERGY-EFFICIENT

Optimized performance with lower electricity consumption.

TECHNICAL SPECIFICATIONS

Voltage Range

200V-440V

Motor Speed

2850 RPM

Maximum Head

Upto 65 meters

Motor Rating

S1 Continous Duty

Horsepower

0.5 TO 1.0 HP

Maximum Discharge

Upto 2000 LPM

MATERIALS USED

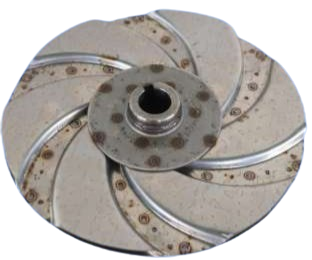

IMPELLER

Noryl Impeller

SS304/202 stainless steel ensures corrosion resistance, durability, and efficiency.

OIL SEAL

Shaft

The NBR double lip seal prevents leakage and protects the motor.

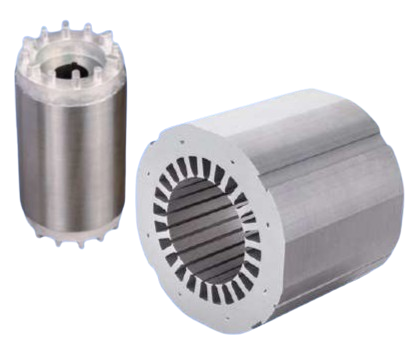

STAMPING

Pump Casing

CRNO stampings efficiently convert electrical to mechanical energy.

WINDING

Ball Bearings

EC-grade copper windings improve conductivity, efficiency, and motor performance.

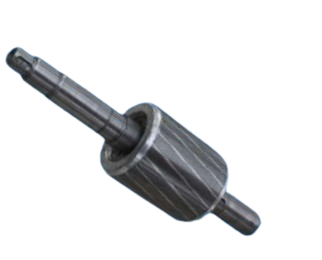

ROTOR SHAFT

Capacitor

The SS 410 shaft offers wear resistance and extends pump lifespan.

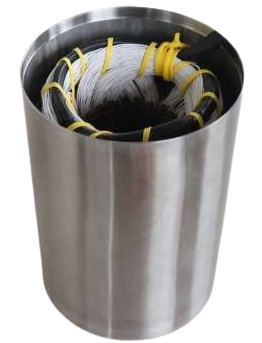

MOTOR BODY

Copper Winding

SS304/202 stainless steel ensures corrosion resistance, durability, and reliability in harsh environments.

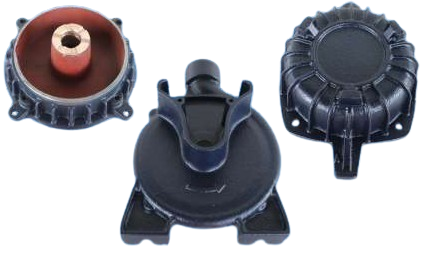

PUMP CASTING COMPONENTS

Mechanical Seals

FG 200 gray iron casting offers strength, abrasion, and heat resistance.

IDEAL FOR

Farmers

Farmers & Agri Users

For wide field water
distribution

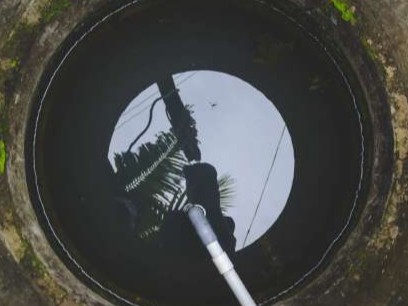

Household

Household Use

Reliable for openwell
water supply

Construction

Construction Sites

For sump-based domestic
water applications

Distributors

Distributors

High rotation in tier-2/tier-3
rural markets

CORE BENEFITS

Common Problems and Our Pumping Solutions

Difficult access to pump chambers

Horizontal layout allows easier handling

Need for strong discharge in farms

High flow rate supports widespread irrigation

Rusting in submerged conditions

Rust-free components increase lifespan

Frequent motor overheating

Submersible cooling + EC copper prevents heat-up

PERFORMANCE

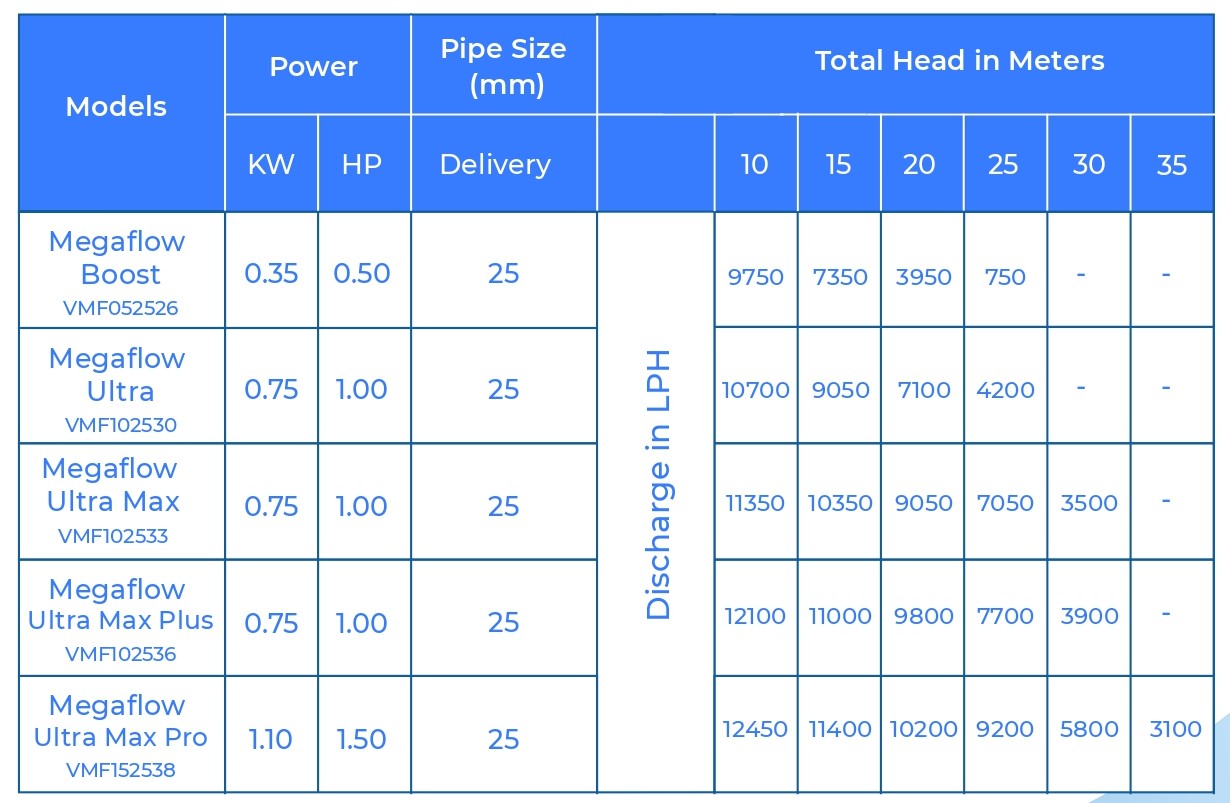

Performance Chart
