AQUARISE
(Horizontal Openwell Pump(Enamel Winding))

VR Pumps Manufactures Aquarise, it's a robust horizontal openwell pump designed for installation inside sumps or open wells. Built with high-quality enamel winding, it offers enhanced motor protection, improved insulation, and longer service life, even under demanding operating conditions. Engineered to perform reliably with surface water levels, Aquarise delivers high discharge output, making it a dependable solution for both domestic and heavy-duty applications.

RAPID FLOW
EFFICIENCY MOTORS
RUST PROOF

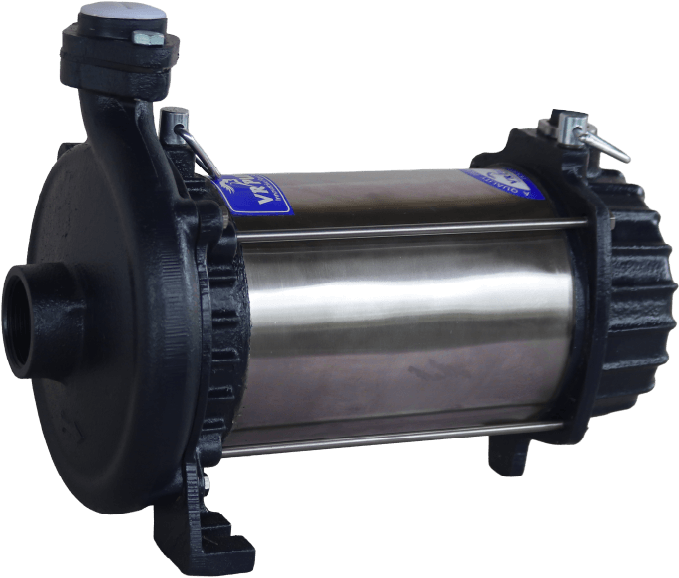

AQUARISE Pump

OUR PRODUCT MODELS

AQUARISE ULTRA

VAR102530

AQUARISE ULTRA MAX

VAR102535

DESIGN HIGHLIGHTS

HORIZONTAL SUBMERSIBLE SETUP

Installed directly into sumps or wells for efficient submerged operation.

EASY MAINTENANCE

Accessible design allows easier cleaning, servicing, and repairs.

HIGH FLOW CAPACITY

Delivers strong discharge, ideal for irrigation and water supply.

INBUILT BALL BEARING & CAPACITOR

Reduces friction and stores electrical energy for smoother operation.

RUST-FREE BUILD

Corrosion-resistant body ensures durability and long service life.

ENERGY-EFFICIENT

Optimized performance with lower electricity consumption.

TECHNICAL SPECIFICATIONS

Voltage Range

180–230V

Motor Speed

2850 RPM

Maximum Head

Upto 35 meters

Motor Rating

S1 Continueous Duty

Horsepower

0.5 TO 1.5 HP

Maximum Discharge

Upto 160 LPM

MATERIALS USED

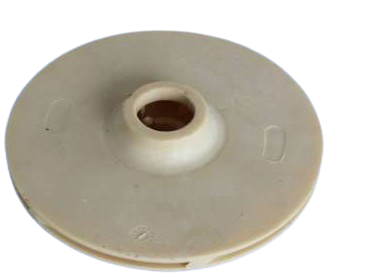

IMPELLER

Noryl Impeller

The NORYL impeller offers excellent corrosion resistance and durability, ensuring reliable performance even in harsh environments.

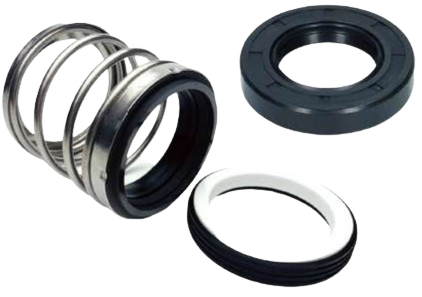

OIL SEAL & MACHANICAL SEAL

Shaft

Prevents leakage and protects the motor, ensuring long-lasting, seamless, and leak-proof operation.

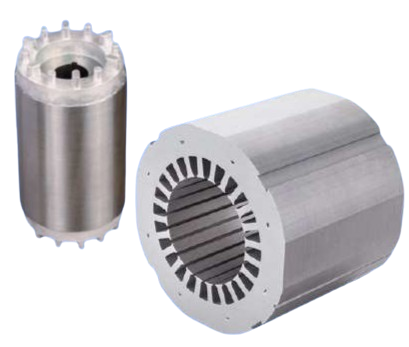

STAMPING

Pump Casing

High-grade CRNO electrical steel ensures efficient energy conversion.

WINDING

Ball Bearings

EC-grade copper windings provide superior conductivity and high efficiency.

ROTOR SHAFT

Capacitor

SS 410 shaft offers wear resistance and extends the pump's lifespan.

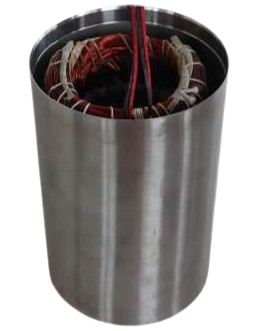

MOTOR BODY

Copper Winding

SS304/202 stainless steel ensures corrosion resistance and durability.

PUMP CASTING COMPONENTS

Mechanical Seals

FG 200 gray iron casting with rust-proof coating provides strength and heat resistance.

IDEAL FOR

Farmers

Farmers & Agri Users

For wide field water
distribution

Household

Pump Installers

Reliable for openwell
water supply

Construction

Home Builders

For sump-based domestic
water applications

Gardening

Distributors

High rotation in tier-2/tier-3
rural markets

CORE BENEFITS

Common Problems and Our Pumping Solutions

Difficult access to pump chambers

Horizontal layout allows easier handling

Need for strong discharge in farms

High flow rate supports widespread irrigation

Rusting in submerged conditions

Rust-free components increase lifespan

Frequent motor overheating

Submersible cooling + EC copper prevents heat-up

PERFORMANCE

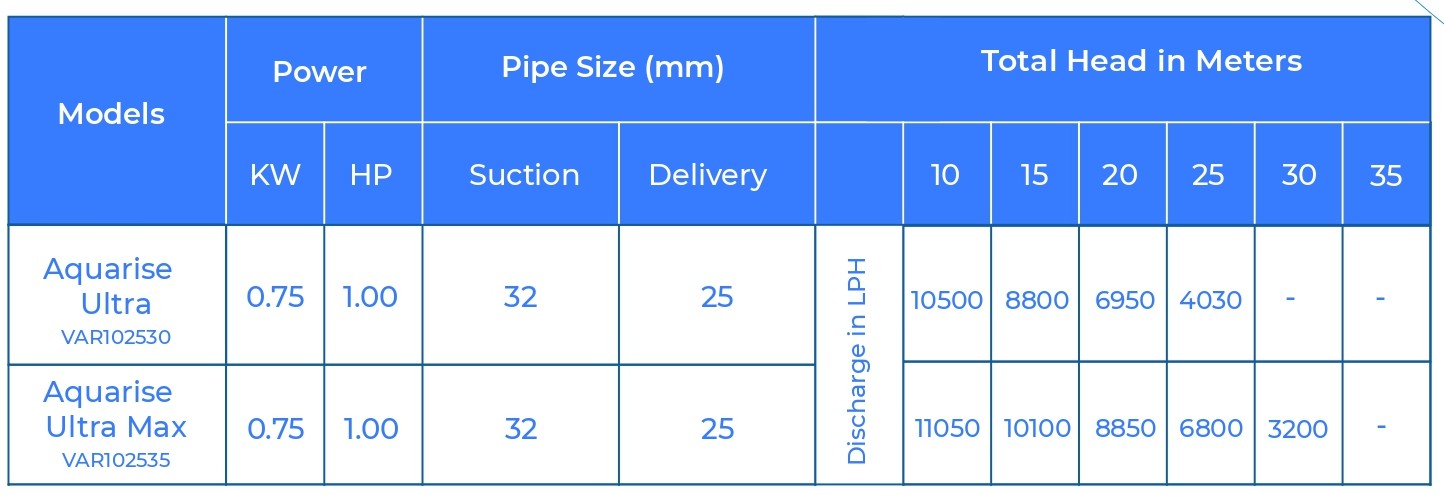

Performance Chart
