DEEPFLOW
(Sumersible Pump)

VR Pumps Manufactures Deepflow, it's specially engineered for deep and narrow borewells, making it ideal for domestic and semi-agricultural applications. Designed to operate fully submerged, it delivers consistent and efficient water output while remaining protected from external elements. Built with a durable stainless-steel body, Deepflow is known for its high efficiency, quiet operation, and long service life, ensuring reliable performance even during continuous usage.

SLEEK DESIGN
POWER SAVING
FULLY SUBMERSIBLE
AQUARISE Pump

OUR PRODUCT MODELS

DEEPFLOW FORCE

4VDFF1032080-R3-10

DEEPFLOW FORCE

4VDFF1032090-R1-12

DEEPFLOW FORCE

4VDFF1532110-R3-14

DEEPFLOW ULTRA

4VDFU1032080-R3-10

DEEPFLOW ULTRA

4VDFU1032090-R1-12

DESIGN HIGHLIGHTS

SLIM BODY DESIGN

Fits comfortably in narrow borewells
(4.5”-inch diameter).

FULLY SUBMERSIBLE

Remains underwater – no noise, no vibration.

LIGHTWEIGHT BODY

Easy to move across job sites.

RUST & WEATHER-PROOF

Stainless steel body resists corrosion.

ENERGY-EFFICIENT

Optimized to deliver maximum output.

TECHNICAL SPECIFICATIONS

Voltage Range

200V - 440V

Motor Speed

2850 RPM

Maxmium Head

Upto 300 meters

Motor Rating

S1 Continuous Duty

Horsepower

0.5 TO 6 HP

Maximum Discharge

Upto 300 LPM

MATERIALS USED

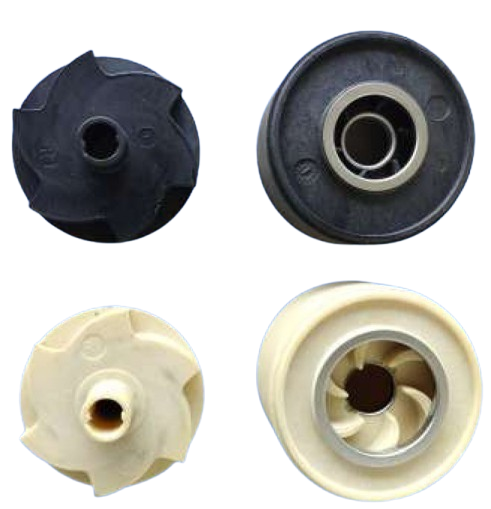

IMPELLER & DIFFUSER

Noryl Impeller

The NORYL impeller ensures corrosion resistance and long-lasting reliable performance.

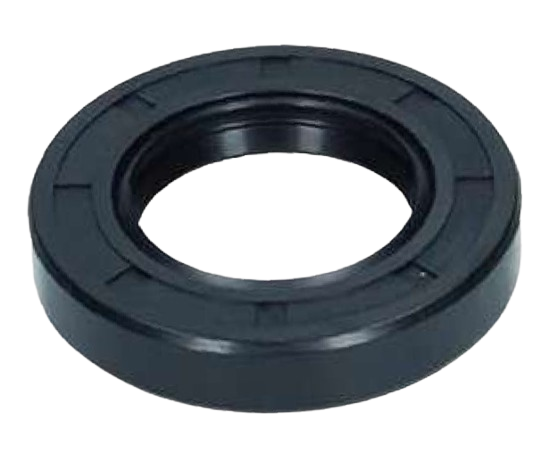

OIL SEAL

Shaft

This combination provides a leak-proof seal and protects the motor for long-term reliability.

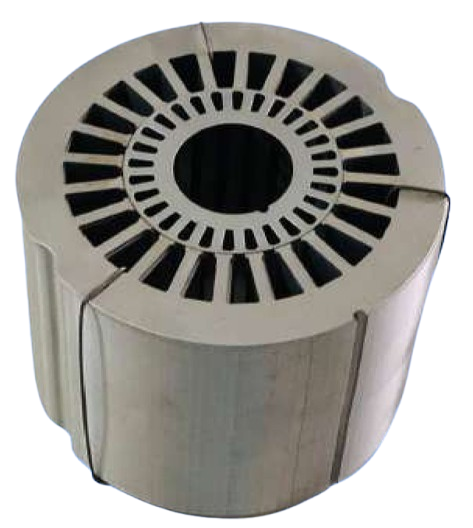

STAMPING

Pump Casing

CRNO electrical steel stampings ensure efficient conversion of electrical energy into mechanical power.

WINDING

Ball Bearings

High-quality EC-grade copper winding ensures better conductivity, higher efficiency, and reduced energy consumption.

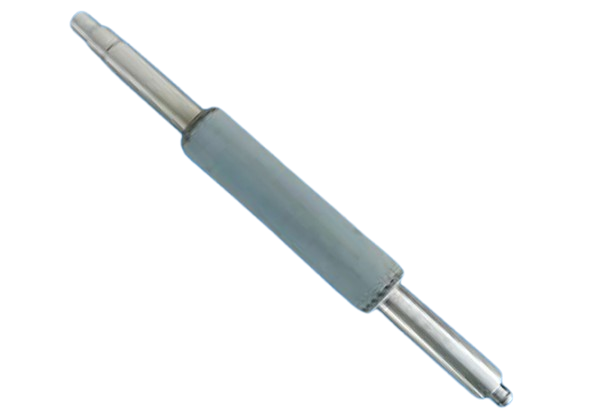

ROTOR SHAFT

Capacitor

SS 410 shaft offers high wear resistance and extends pump life.

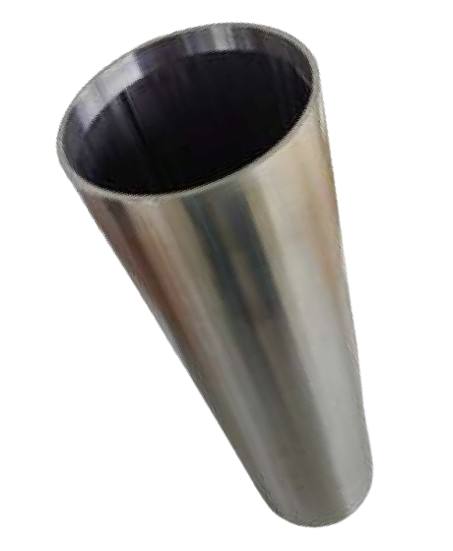

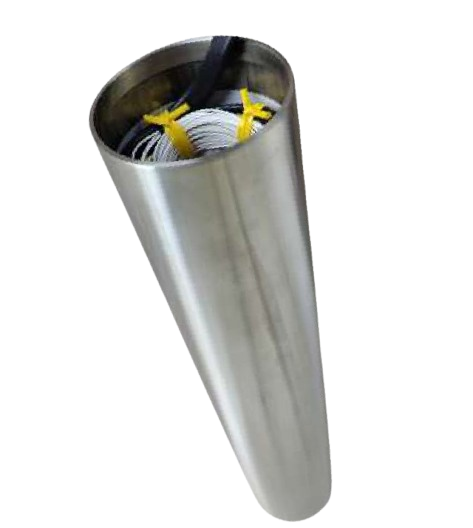

MOTOR BODY

Copper Winding

SS304/202 stainless steel ensures corrosion resistance, durability, and reliable performance in harsh environments.

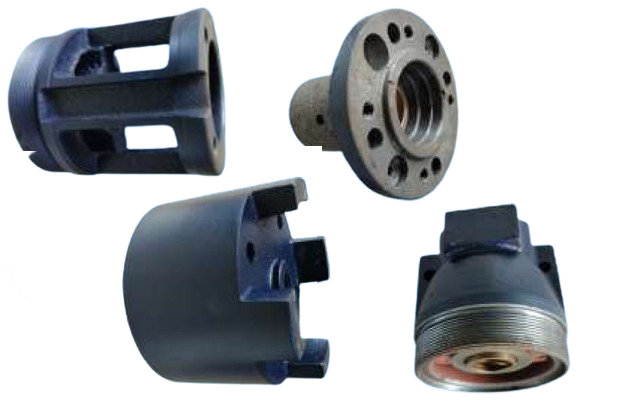

PUMP CASTING COMPONENTS

Mechanical Seals

FG 200 gray iron casting with rust-preventive coating offers strong, abrasion-resistant, and heat-resistant performance.

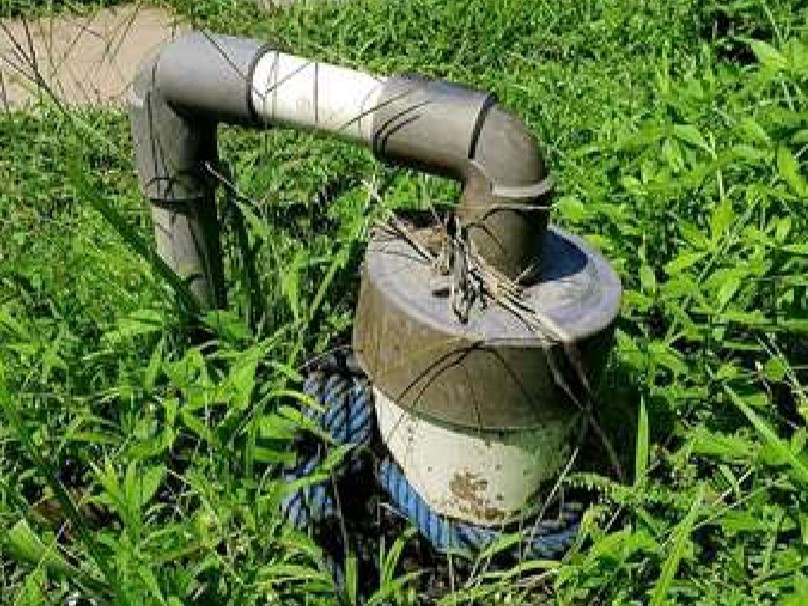

IDEAL FOR

Farmers

Individual Home Owners

Need reliable water
from private borewells

Household

Small-Scale Farmers

Looking for consistence
irrigation water

Construction

Pump Technicians

Easy to handle,install
and maintain

Gardening

Dealers & Distributors

High re-order pump model
with wide domestic use

CORE BENEFITS

Common Problems and Our Pumping Solutions

No space in narrow borewells

Slim design fits easily into tight casing

High power bills

High flow with low consumption

Frequent breakdown in rough water

Sealed motor stays clean and protected

Motor overheating

Fully submerged + Class B insulation = longer life

PERFORMANCE

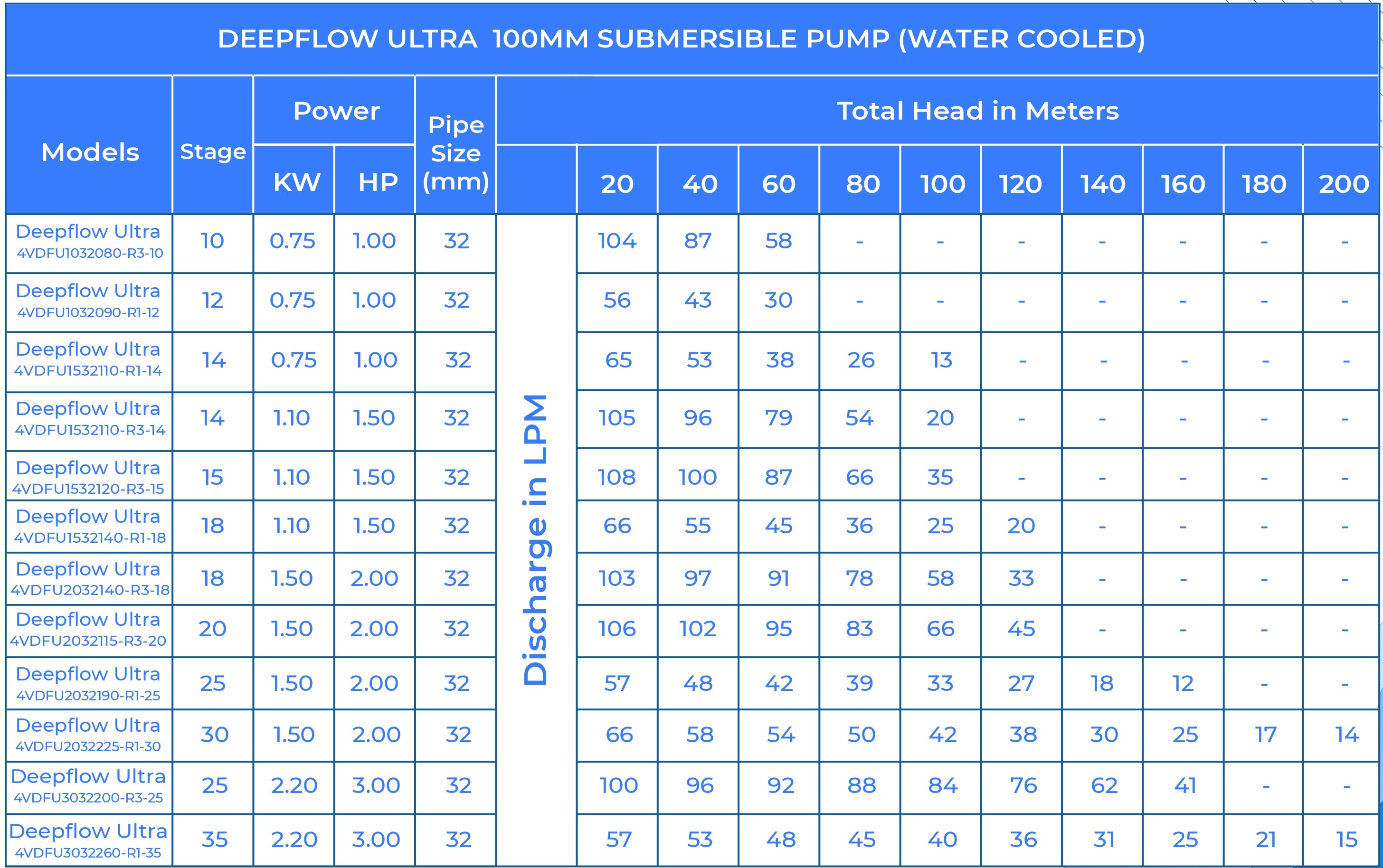

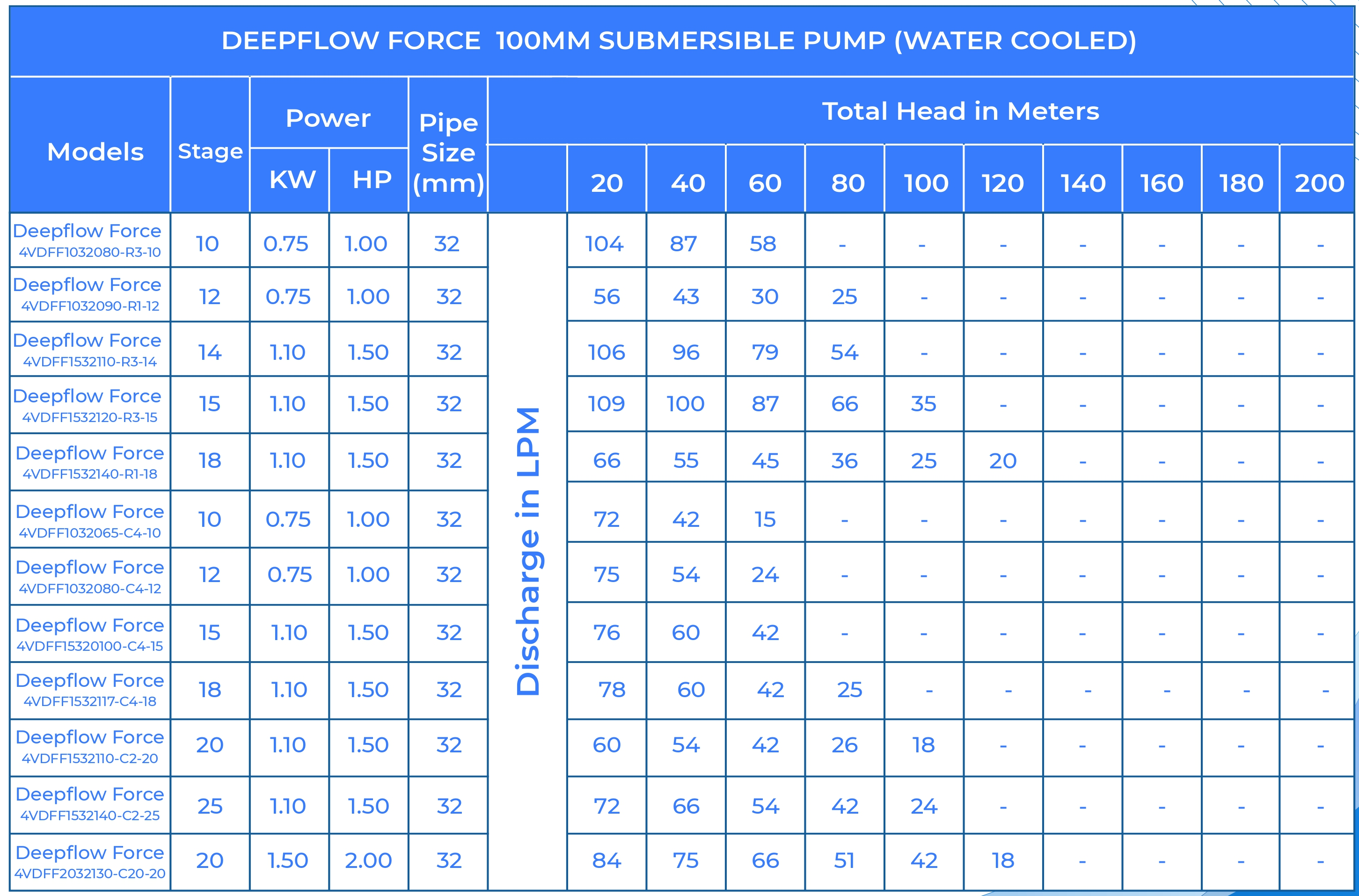

Performance Chart
Performance Chart
